6-13kW PMSM Motor NP 155H (48–96V) | High-Efficiency Electric Vehicle Drive Motor

6000-13000  Watt NP 155H 48-96V PMSM Motor for Electric Vehicle

This 6 - 13kW PMSM motor, with a rated power of 6000 - 13000W, is suitable for a variety of electric devices and ensures stable power output.

Its rated voltage of 48 - 96V provides excellent adaptability to power sources, allowing for flexible application in different electrical systems.

The motor boasts an efficiency of up to 95%, reducing energy consumption. With a speed range of 3000 - 7000rpm and a peak torque of 70 - 120N·m, it runs smoothly and steadily.

Equipped with an encoder position sensor, featuring an S9 protection rating and H thermal classification, it can operate reliably in a storage temperature range of -40℃ - 85℃, a working temperature range of -40℃ - 55℃, and a humidity environment of 0 - 95%.

Key Features

Rated Power: 6000 - 13000W; Rated Voltage: 48 - 96V

Peak Torque: 70 - 120N·m; Speed: 3000 - 7000rpm

Efficiency: Up to 95%; Control: Sine Wave, Vector

Protection: S9; Thermal Class: H; Temp Range: -40℃ - 55℃ (working), -40℃ - 85℃ (storage); Humidity Range: 0 - 95%

CONTACT US

Product Description

1. PMSM 10KW ELECTRIC MOTOR

Model No.: NP-120-48~72V

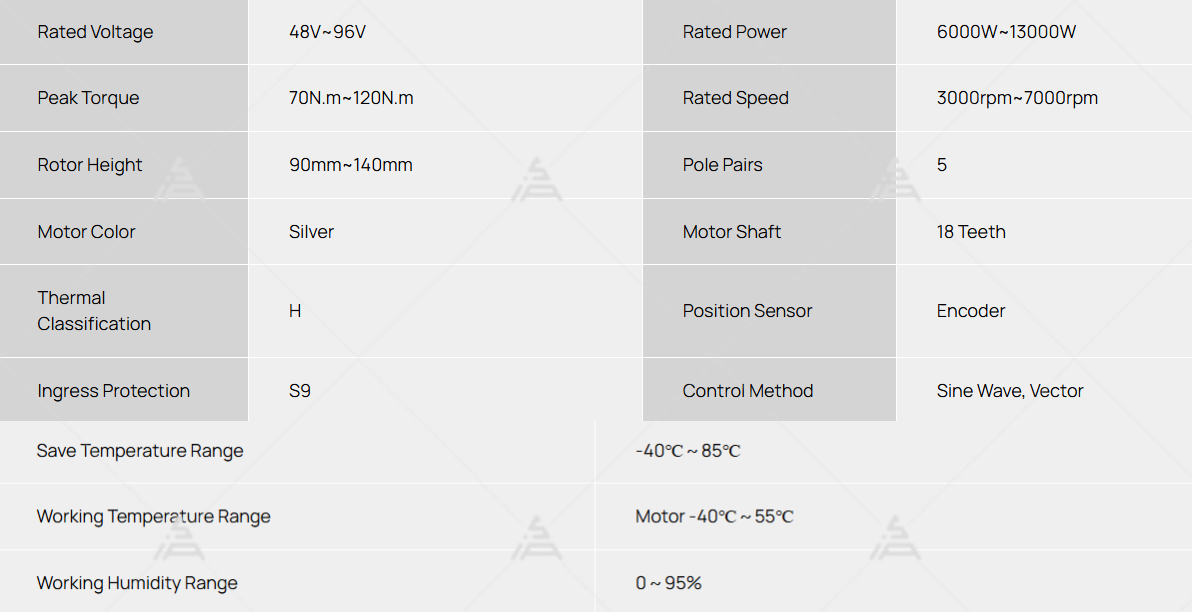

Basic Specification：

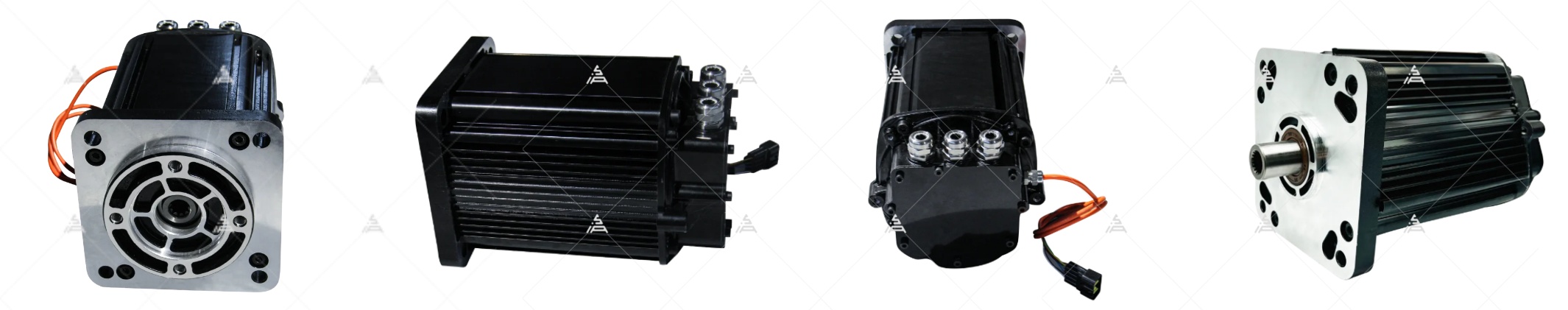

Multi-angle product photos：

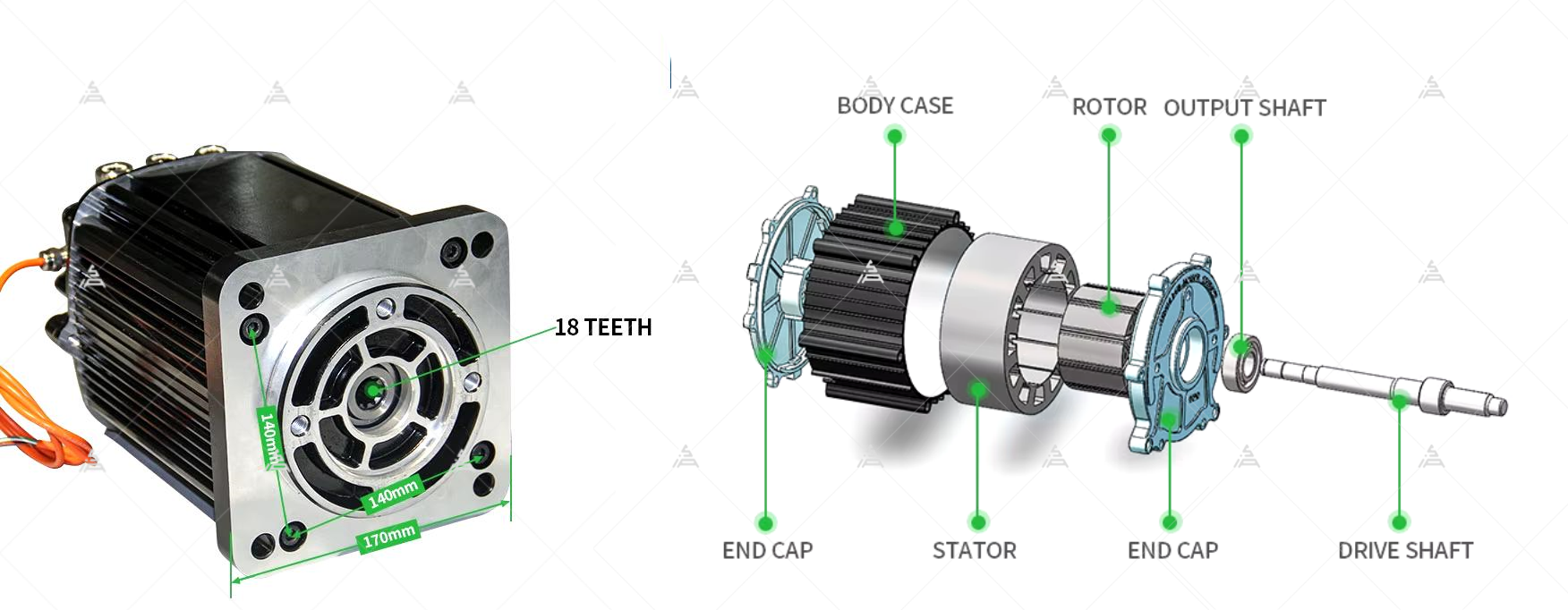

Dimension Drawing：

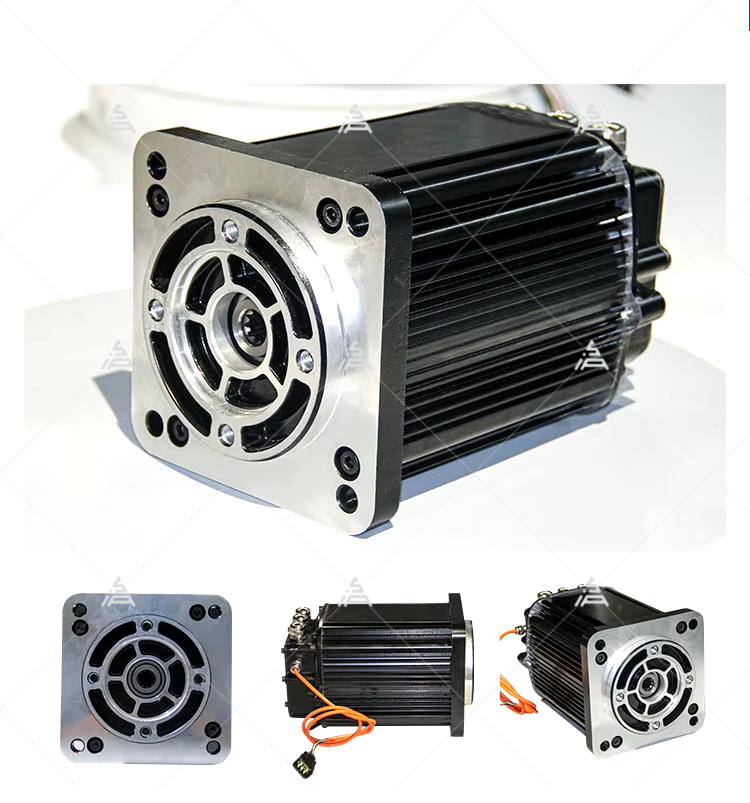

Multi-angle product photos：

Detailed Picture Information：

Various Vehicle Usage Scenarios
