2-5kW PMSM Motor NP 145H (48–96V) | High-Efficiency Electric Vehicle Drive Motor
2-5kW 48-96V PMSM Motor for Electric Vehicle
The 2-5kW PMSM Motor is a high-efficiency Permanent Magnet Synchronous Motor (PMSM) rated for 48V–96V systems, with power output from 2kW to 5kW. It’s ideal for electric tricycles, light-duty four-wheelers, and utility vehicles requiring strong, consistent performance.
With peak torque up to 86N·m and speeds up to 6000rpm, this motor ensures quick acceleration and reliable operation. An encoder-based position sensor provides accurate feedback for smoother control and responsiveness.
Advanced sine wave vector control enables quiet operation, improved efficiency, and reduced energy loss—making it well-suited for both urban transport and light commercial use.
Designed for durability, the motor features an S9 protection rating, thermal class H, and a solid aluminum structure for stable operation across a wide temperature and humidity range.
Key Features
High-torque PMSM design with compact structure for demanding EV applications
Wide voltage and power range (48V to 96V, up to 5000W) for flexible system integration
Encoder-based position feedback for precise low-speed control and responsiveness
High-performance vector control compatibility for smooth, efficient operation
Durable aluminum housing with S9 ingress protection for harsh environments
Thermal Class H rating for stable performance under high load conditions
Customizable shaft and rotor dimensions to match various drivetrains
Product Description
1. PMSM 10KW ELECTRIC MOTOR
Model No.:NP-145-48~96V

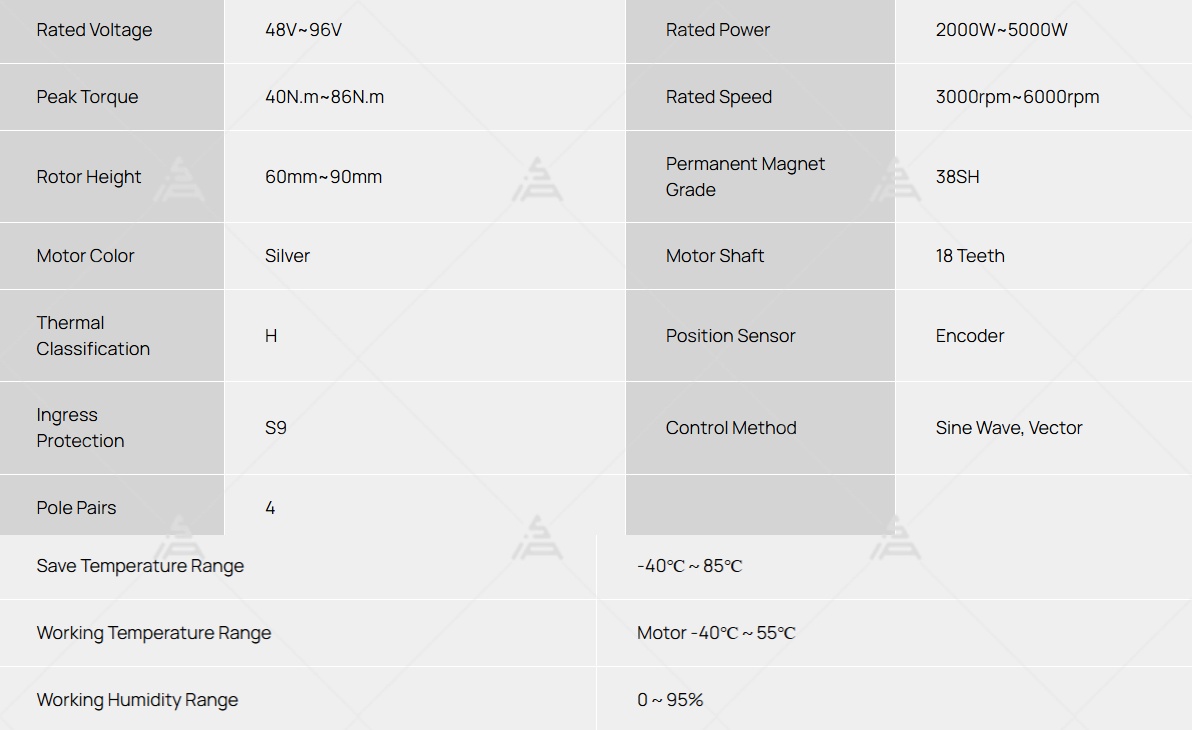

Basic Specification：

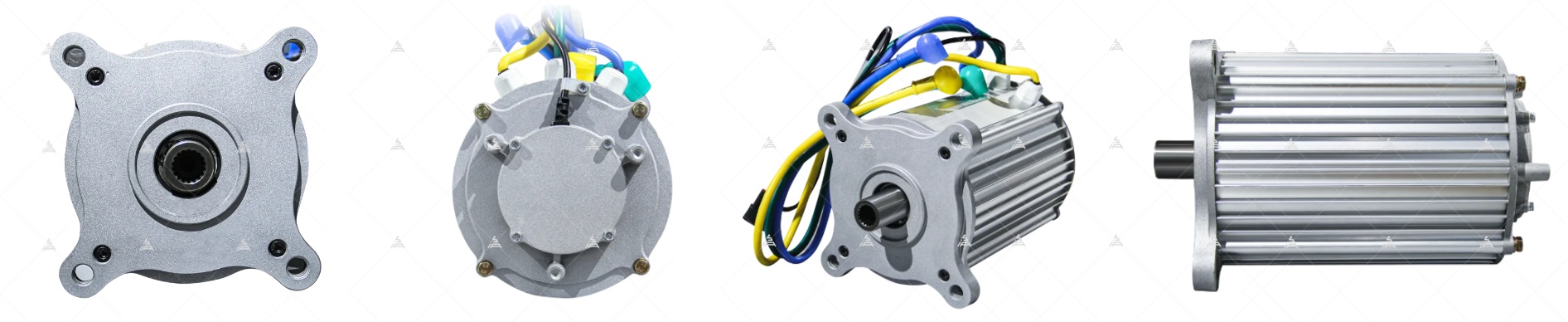

Multi-angle product photos：

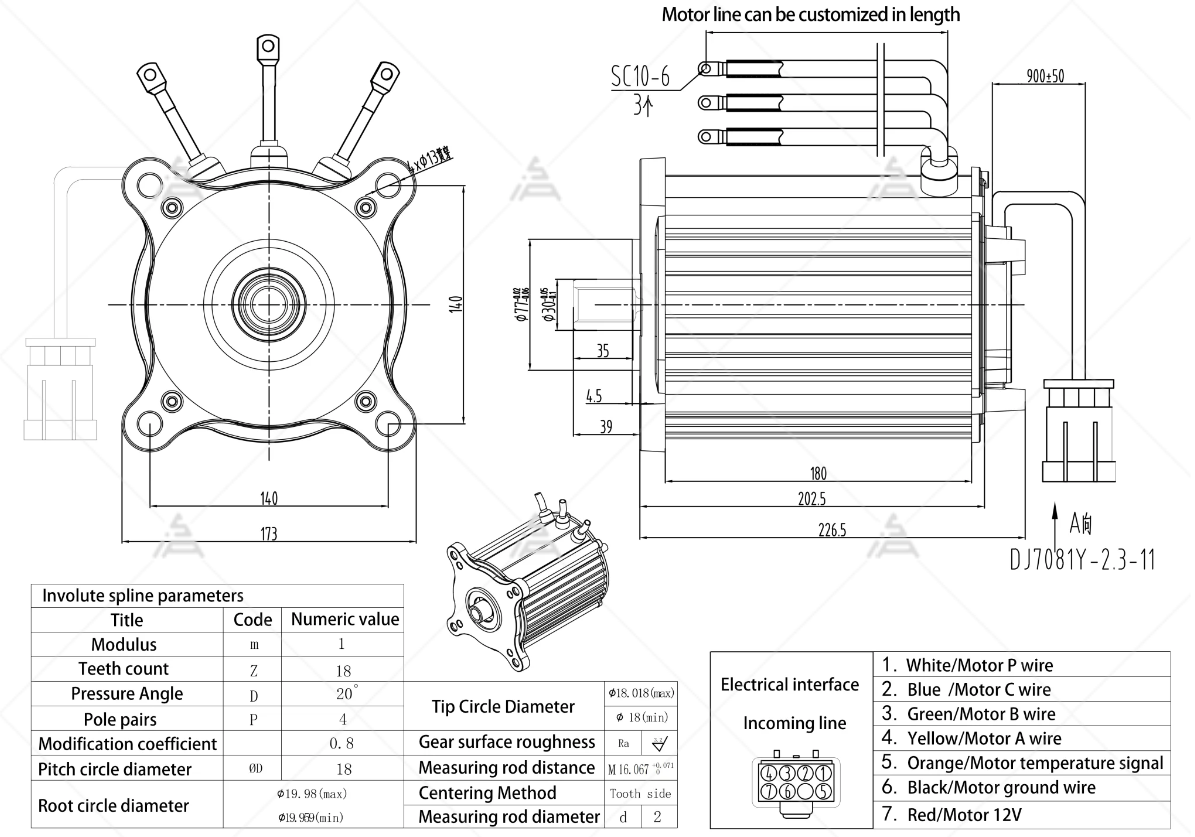

Dimension Drawing：

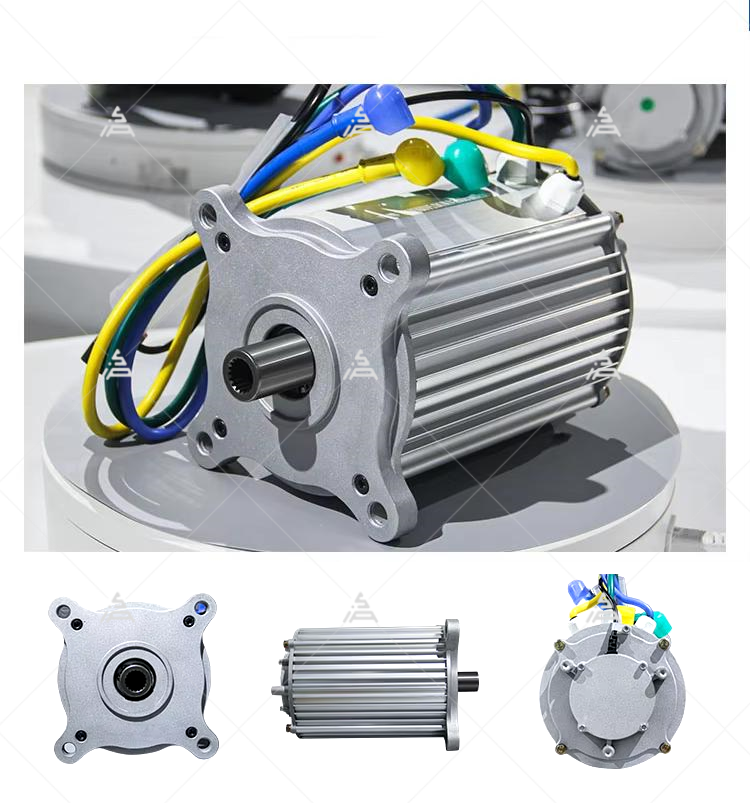

Detailed Picture Information：
Various Vehicle Usage Scenarios

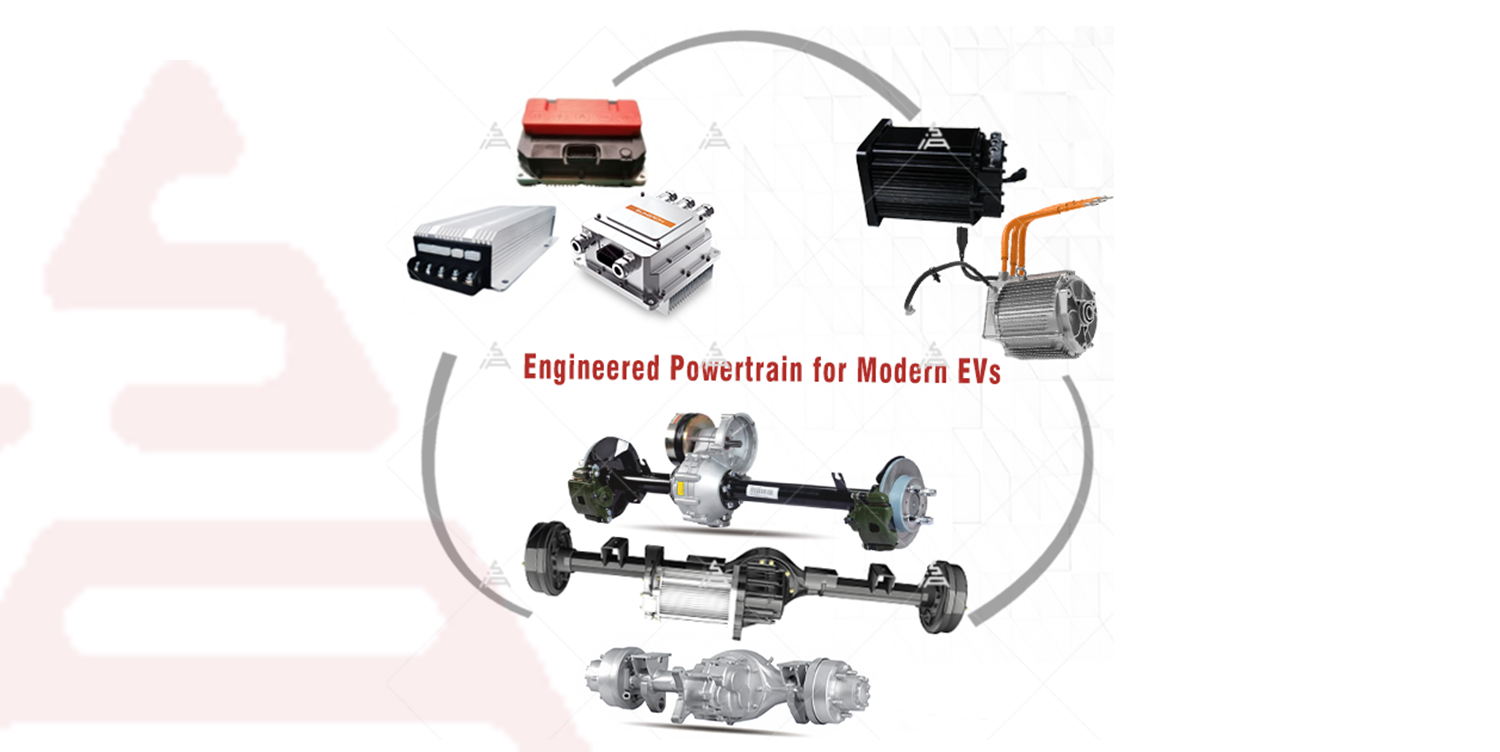

Click on the picture below to learn about our rear axle powertrain kit!
Click below to contact our team or request your tailored quotation today.
