EV Motor Controller AE2215 (30–72V) | Programmable CAN Controller with Regenerative Braking
APT Controller AE2215 30-72V For 5kW PMSM Motor
This 30-72V motor controller has a 5kVA rated capacity and 9kVA peak capacity, ideal for diverse power needs. it ensures precise driving and surge control for high efficiency.
It supports CAN 2.0/RS232 communication, offers programmable functions like brake regeneration, HSA, and anti-slope control, and allows OBD diagnostics.
With IP65 protection, it works at -40℃-55℃ and includes voltage/over-current/over-temperature protections. it suits built-in/hub motors after 100% aging tests.
Key Features
Power: 5kVA rated, 9kVA peak; DC 30-72V, 200A battery current limit.
Control: FOC, SVPWM, DTC/MTPA; excellent surge control.
Features: CAN/RS232, brake regen, HSA, anti-slope, OBD; programmable parameters.
Protection: IP65, -40℃-55℃ operation; voltage/over-current/over-temperature safeguards.
Design: 5kVA (natural)/9kVA (water cooling); 3.0kg; fits built-in/hub motors (＞200A switch needed).
Product Description
MCU 48-72V Motor Controller
APT.A8 7~18kVA (48~72V)

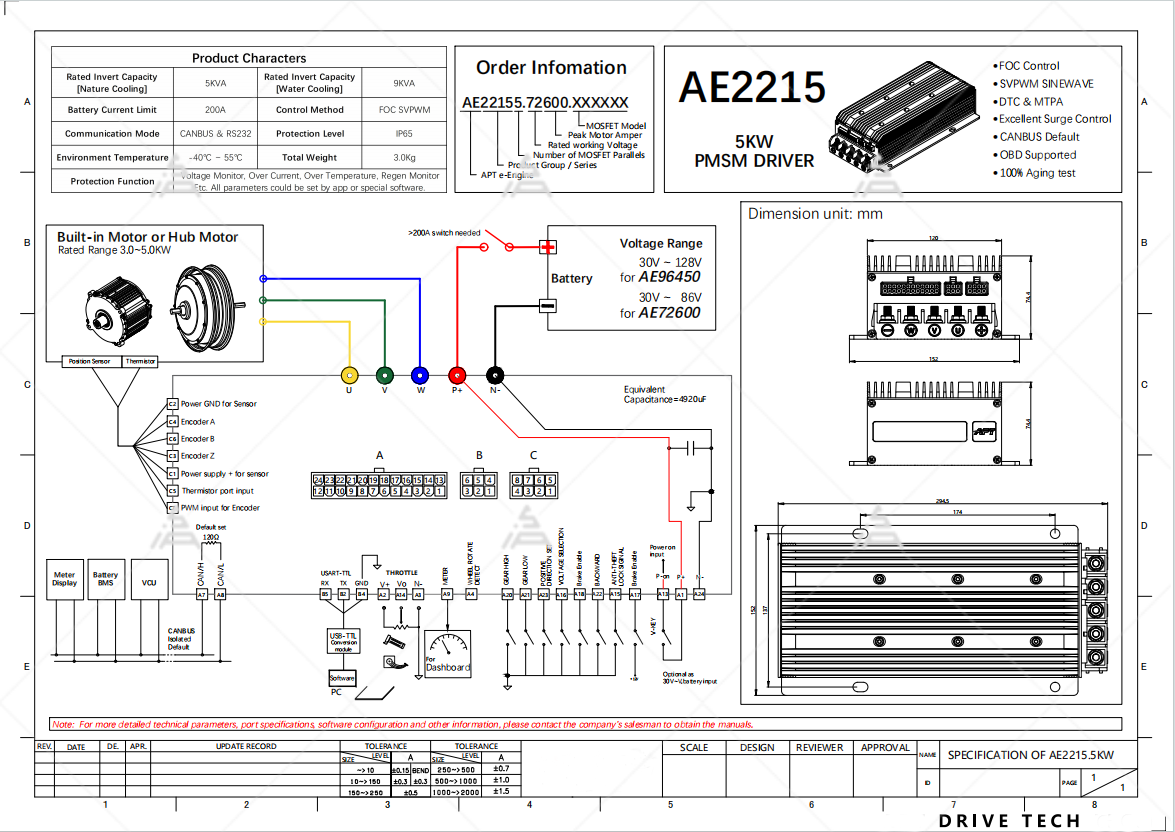

Dimension Drawing：

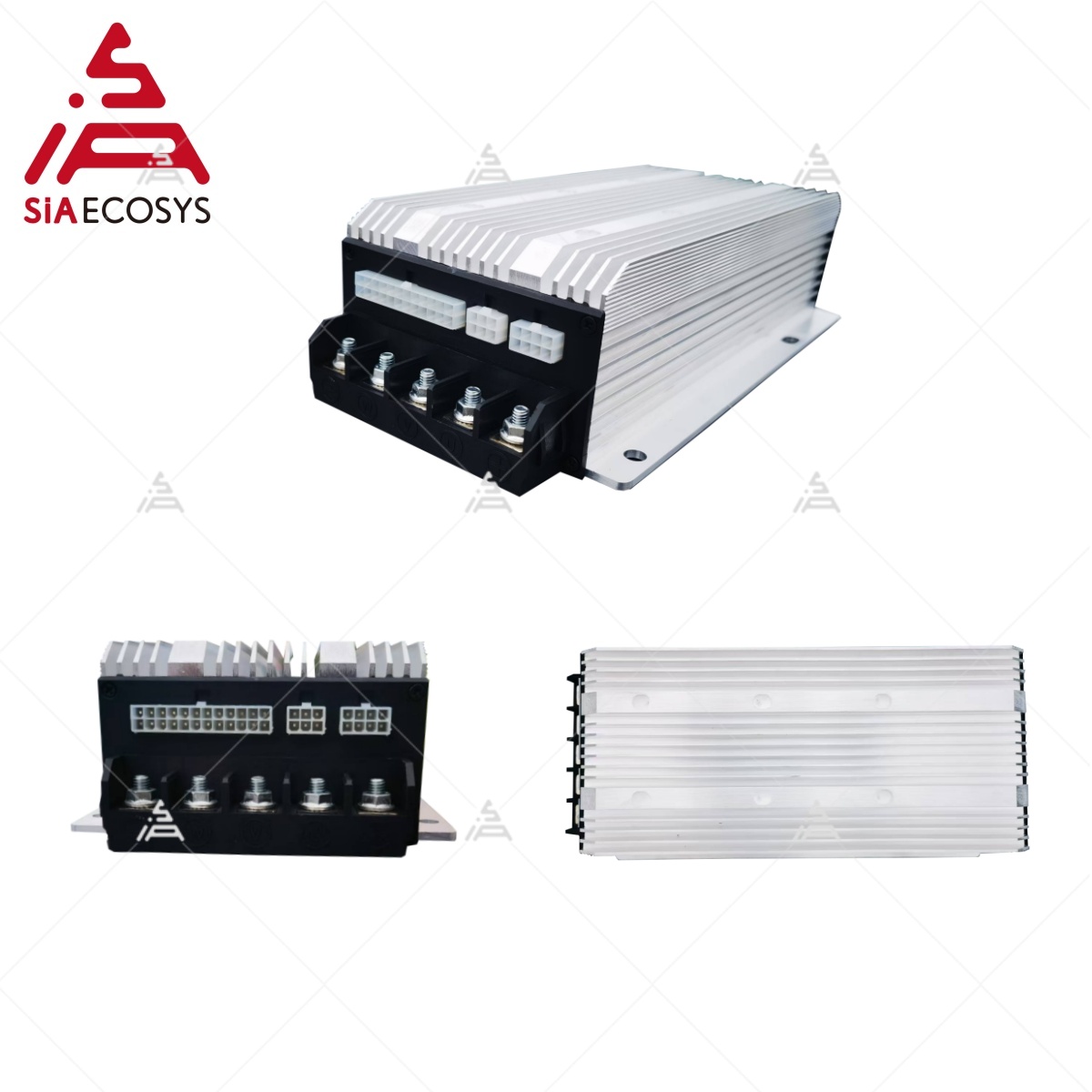

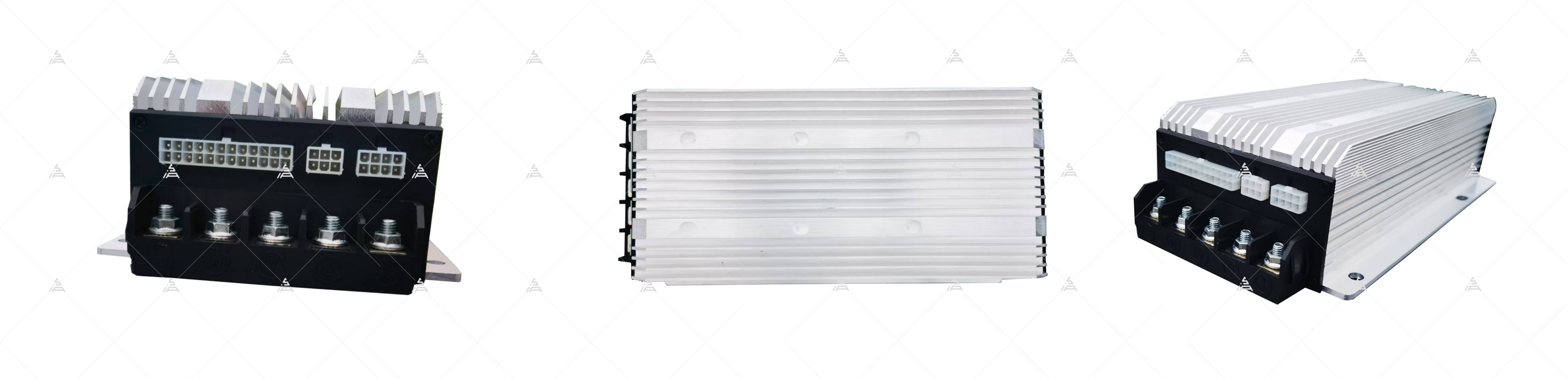

Multi-angle product photos：
Various Vehicle Usage Scenarios
Click on the picture below to learn about our rear axle powertrain kit!
