EV Motor Controller CJ721200 (48-108V) Programmable CAN Controller with Regenerative Braking

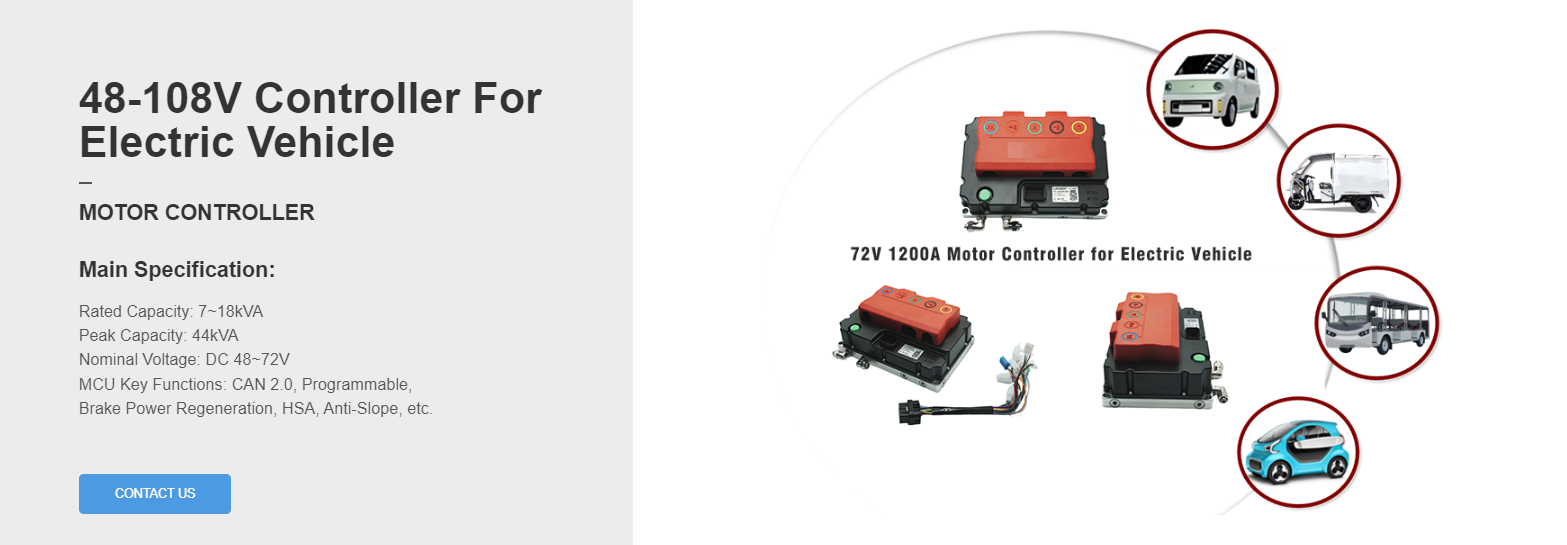

48-108V Controller For Electric Vehicle

The 72V 1200A Motor Controller is designed for PMSM and ACIM motors, with a wide 48–108V voltage range. It delivers up to 1200A phase current and 700A line current, ensuring powerful and efficient performance.

With FOC control, multiple communication options (RS485, CAN, Serial, Bluetooth), and forced water cooling, it provides stable operation. Built-in protections (UVP, OVP, OCP, OTP) and an IP67 rating make it reliable for harsh environments.

Ideal for mini EVs, golf carts, and heavy-duty electric vehicles.

Key Features

Sine wave output for smooth and silent motor control

Support for 48V, 60V, and 72V battery systems

CAN 2.0B communication and PC parameter configuration

Multiple drive modes: forward, reverse, regenerative braking

Over-voltage, over-current, over-temp, stall protection

Support for EABS, slope hold, anti-slip functions

Bluetooth optional for mobile app configuration

CONTACT US

Product Description

-MCU 72V Motor Controller

CJ721200

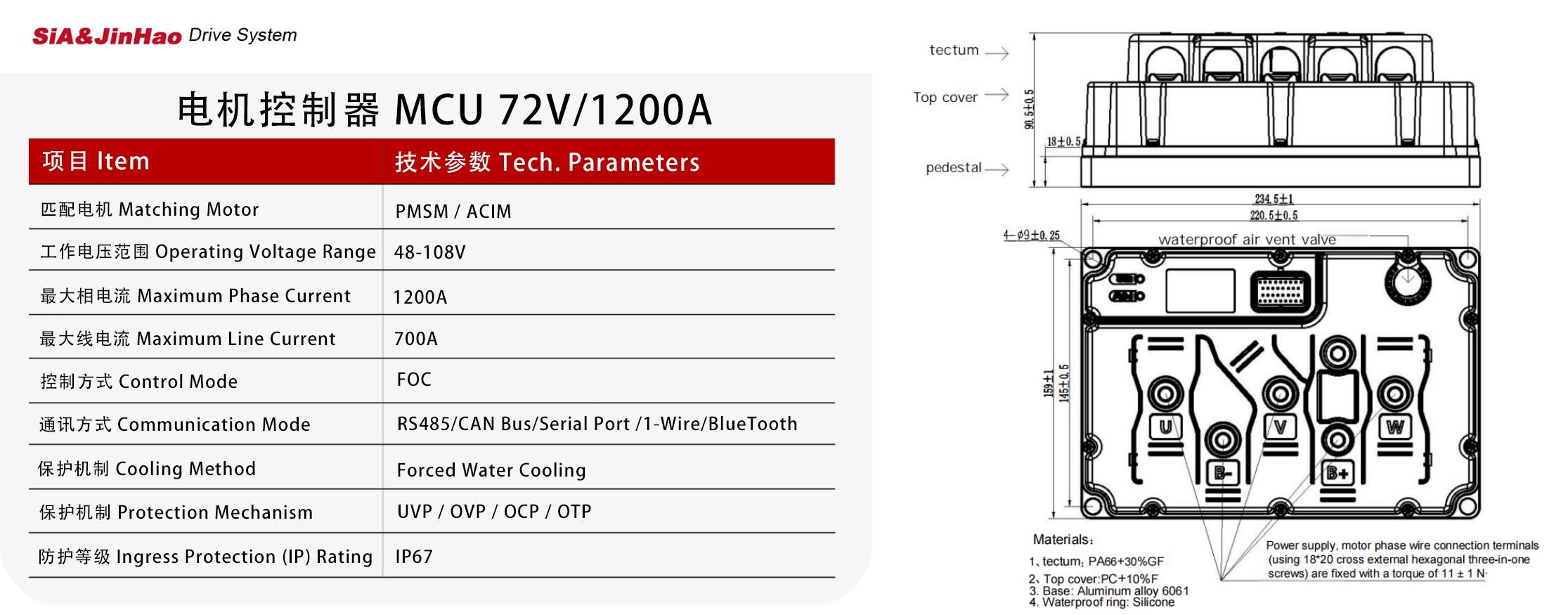

Basic Specification & Drawing：

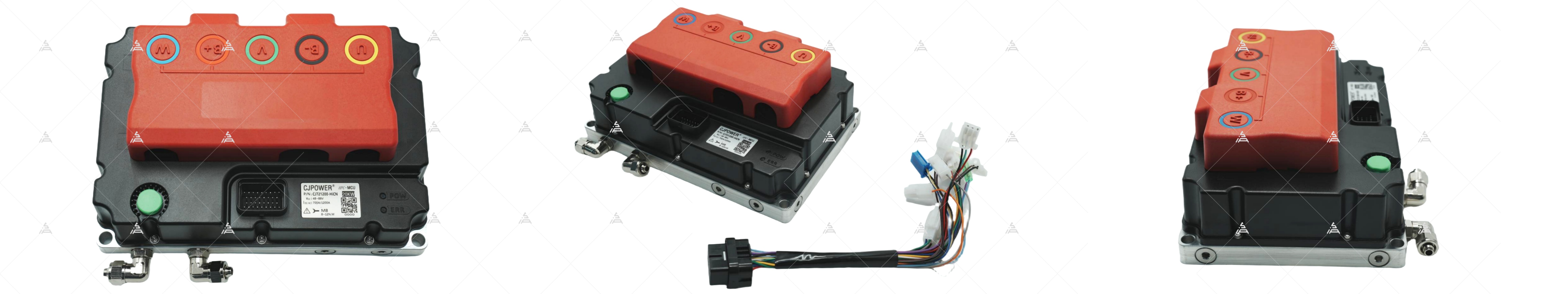

Multi-angle product photos：

Various Vehicle Usage Scenarios

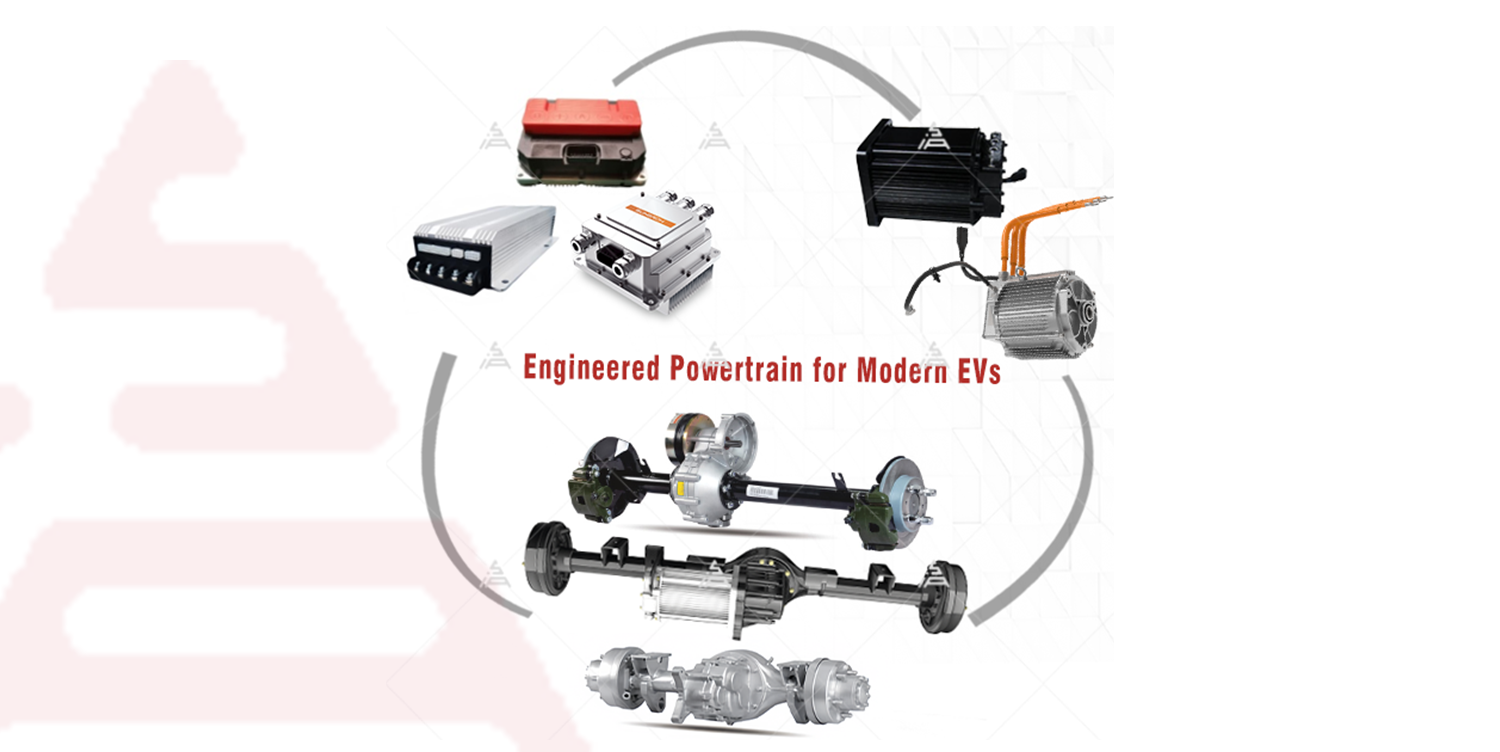

Click on the picture below to learn about our rear axle powertrain kit!

Click below to contact our team or request your tailored quotation today.
