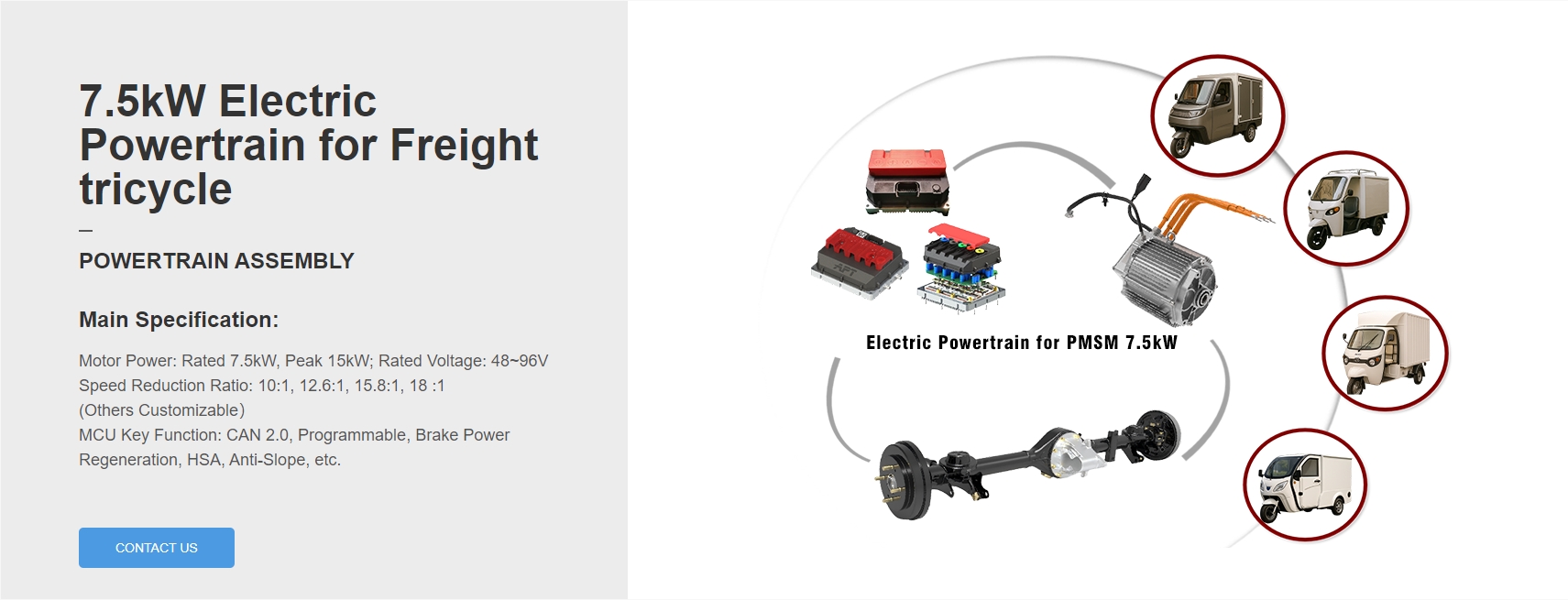

H Axle 7.5kW Electric Power train for Freight tricycle – Smooth & Quiet Drive System for Tourist Transport
PMSM 7.5kW Electric Power train for Freight tricycle

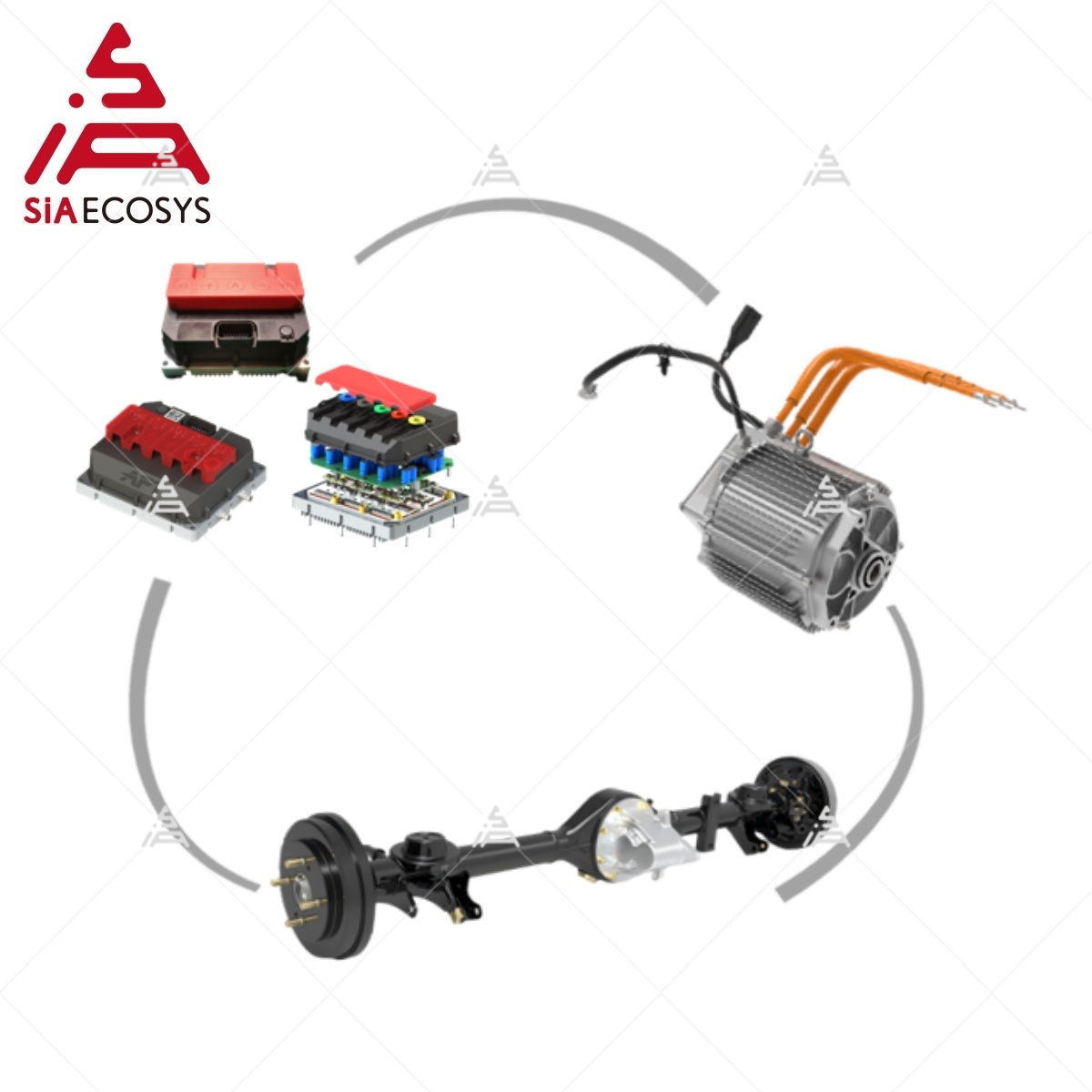

Our 7.5kW electric powertrain is specifically developed for electric logistics vehicles and light-duty utility carts, delivering a compact and energy-efficient solution optimized for urban and low-speed transportation scenarios.
The system integrates a high-efficiency PMSM motor with a peak power of 15kW and 100Nm torque, ensuring smooth acceleration and stable performance under load. Matched with a customizable rear axle and intelligent MCU, it supports CAN 2.0 communication, regenerative braking, Bluetooth programmability, and essential safety features like anti-slope and hill start assist.
Designed with durability and adaptability in mind, this powertrain has been successfully applied in electric cargo vehicles across various sectors, providing outstanding control, low operating noise, and reliable performance in real-world logistics environments.
By adopting this tested and ready-to-integrate solution, OEMs can accelerate product development, enhance operational efficiency, and deliver smarter, more dependable electric mobility solutions for last-mile delivery and utility applications.
Key Features
Fully engineered and Pre-tested as a complete drive solution
High-efficiency PMSM motor with up to 95% energy conversion rate
Controller with Bluetooth communication, CAN 2.0 support, and programmable logic
Regenerative braking & intelligent slope-hold feature
Customizable driving axle with low noise and high durability
Support for different vehicle chassis and wheel bolt patterns
Product Description
1. PMSM 7.5KW ELECTRIC MOTOR
Model No.: SEVS-NP155-72/7.5-100H

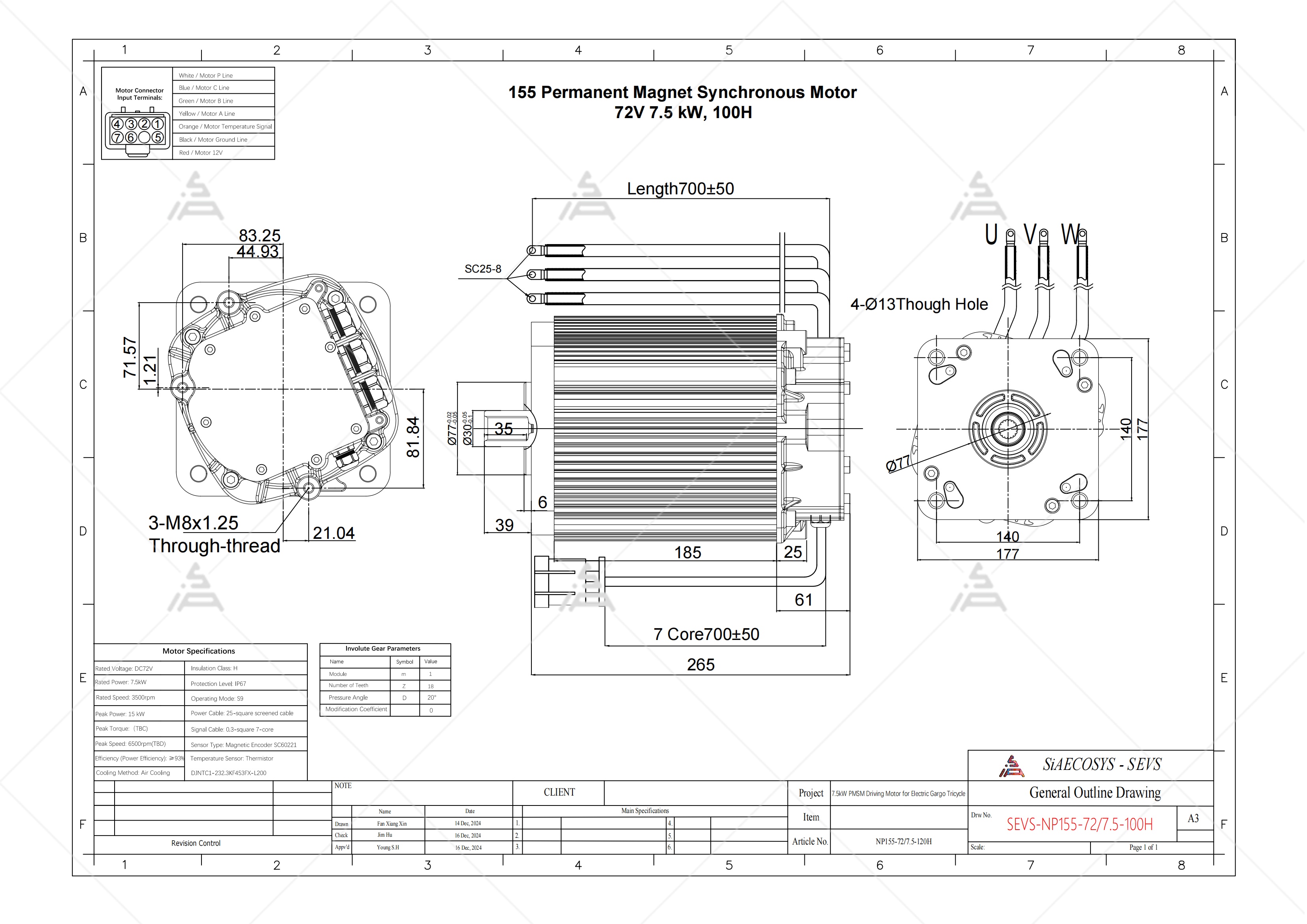

Dimension Drawing:

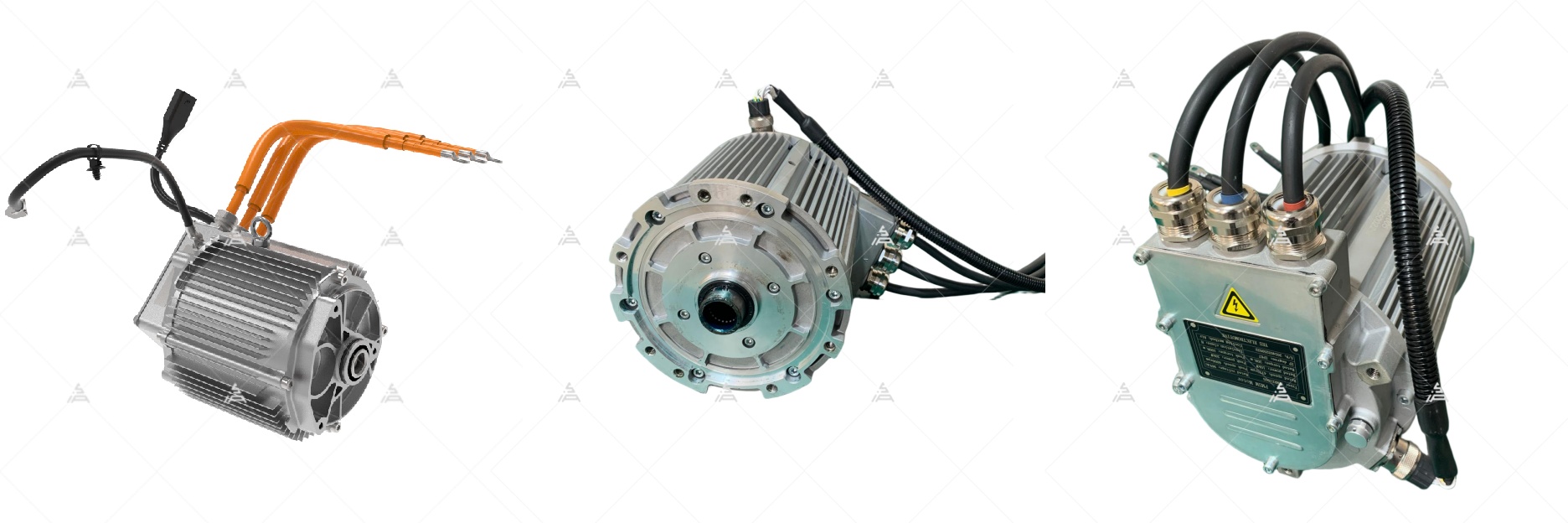

Multi-angle product photos：
2. MCU for 7.5KW PMSM MOTOR
Model No.: APT2209.A0.00E.V3.2

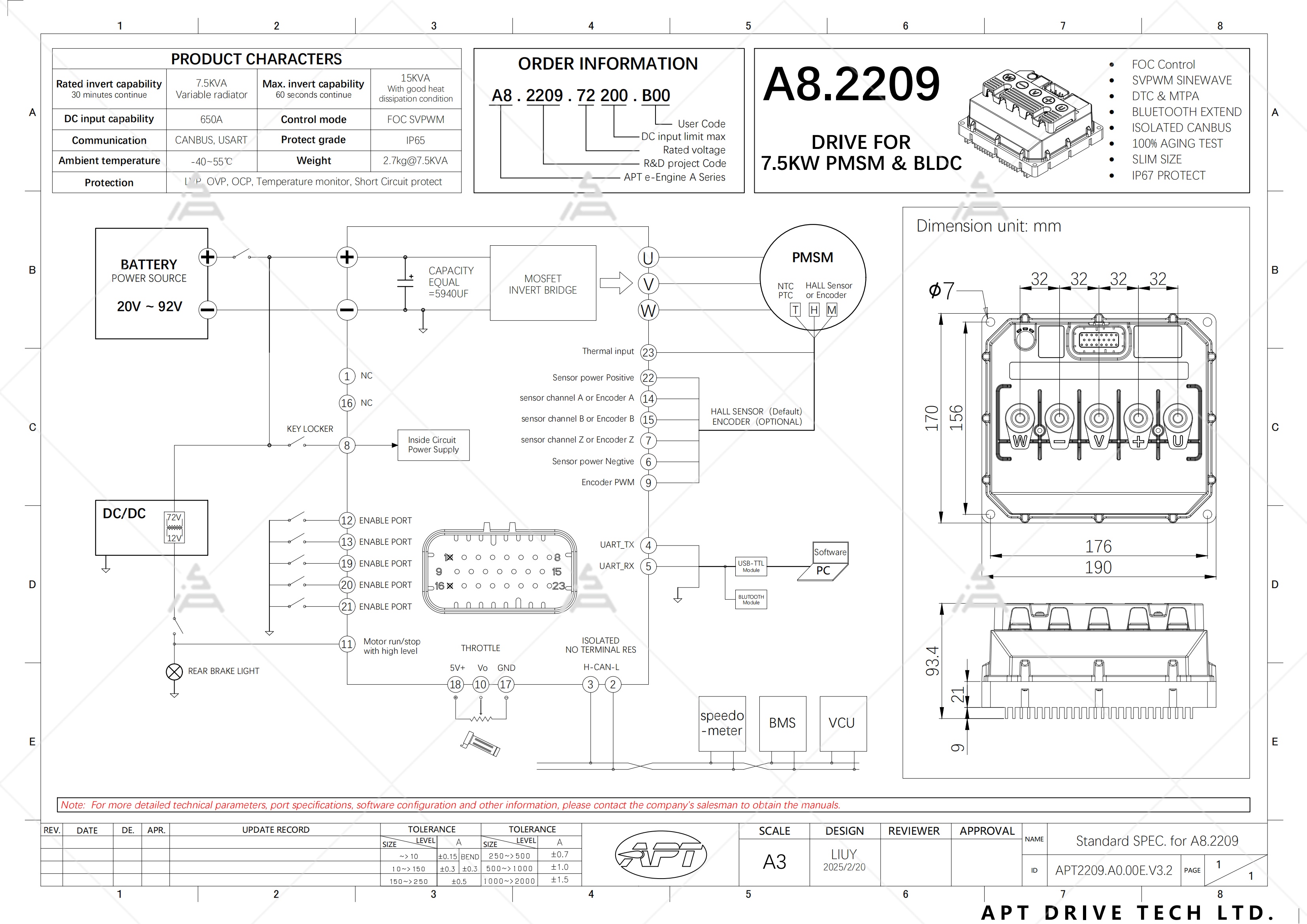

Dimension Drawing:

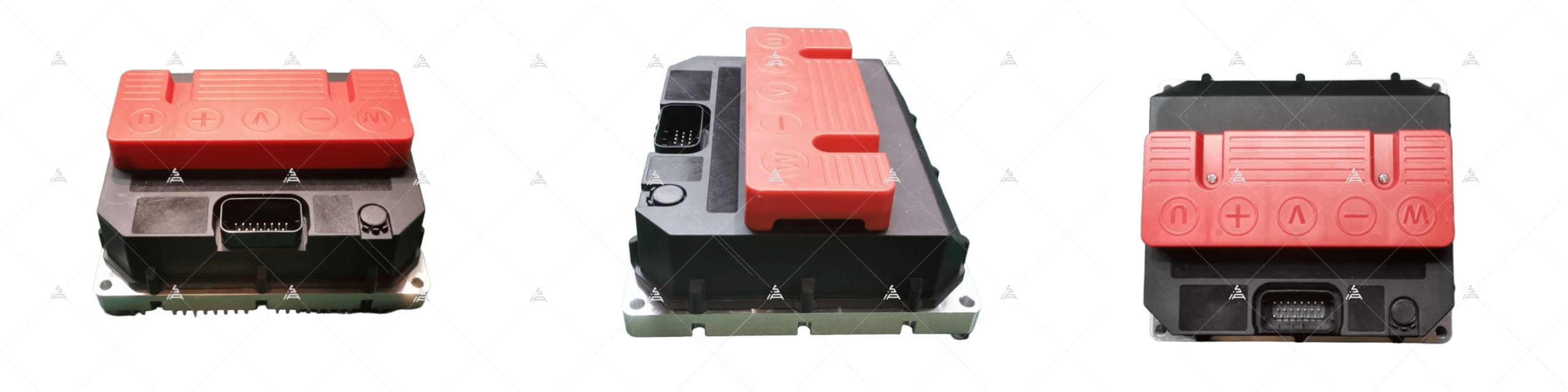

Multi-angle product photos：
3. Rear Axle System
Model No.: JH-136-02
Dimension Drawing:
Multi-angle product photos：
Various Vehicle Usage Scenarios
Click below to contact our team or request your tailored quotation today.
