76V 119Ah Lithium Battery for Tuk-Tuk

Particularly developed for tuk tuk / 3 wheeler

Application

The battery is highly tailor-made to suit tuk tukconversion application, for power train of 72V system;,With 2 packs working in parallel, typical mileage reaches110-120kM on actual running conditions for a classicconverted tuk tuk;

This battery model can be also applied for other typicalelectric 3 wheeler or mini EV,with excellent performance!

CONTACT US

-Technical Parameters

Type of Battery: Lithium-iron phosphate battery

Nominal Capacity: 119 Ah

Nominal Power: 9139Wh

Nominal Voltage: 76.8V (3.2V x24)

Maximum Continuous Charging Current: 50A

Maximum Continuous Discharge Current: 60A

Maximum Continuous Discharging Current: 140A (<5min)

Cycle Life: ≥2500 circles @25±2℃, 0.5C/0.5C (≥80%)

Peak Current: 110±10A (4-6s Protect and cut output)

External Dimension: 665±2*242±2*235±2mm

Battery Pack Weight: 70±2kg

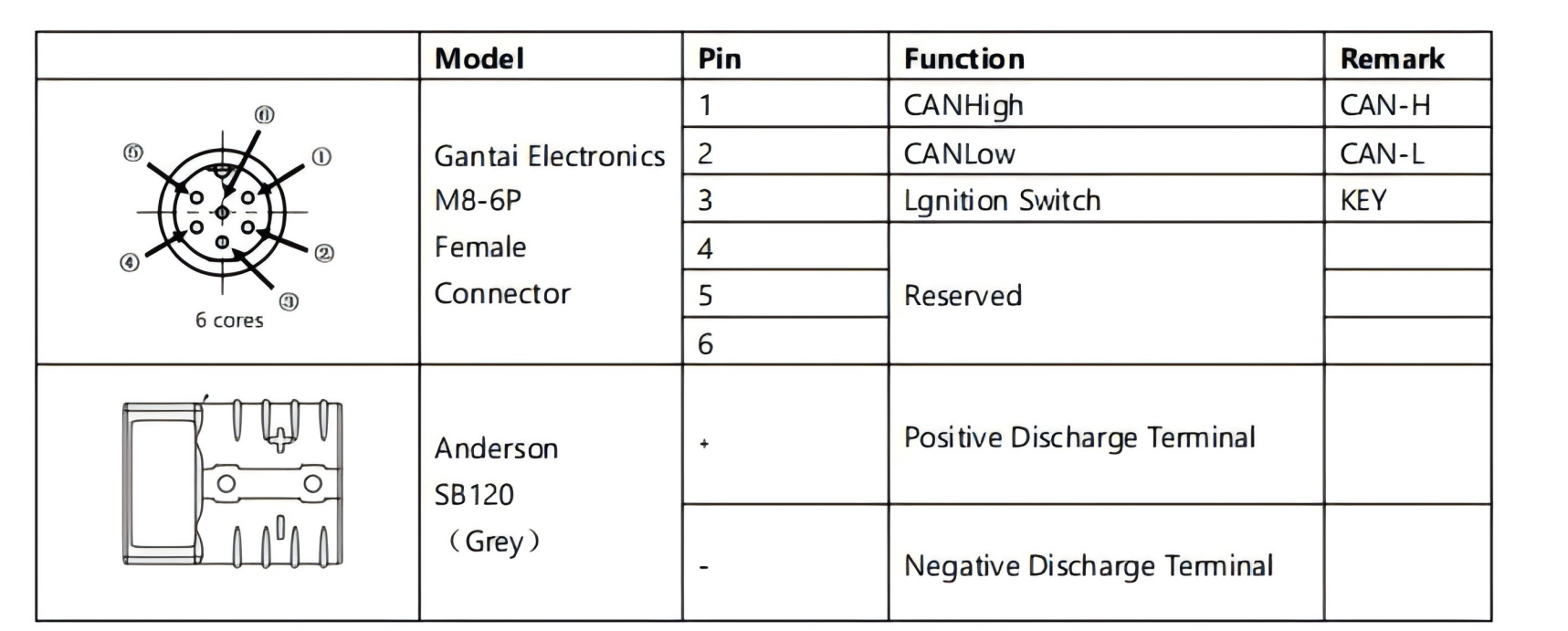

-Key Battery Connection Definition

-Appearance and Interface Definition

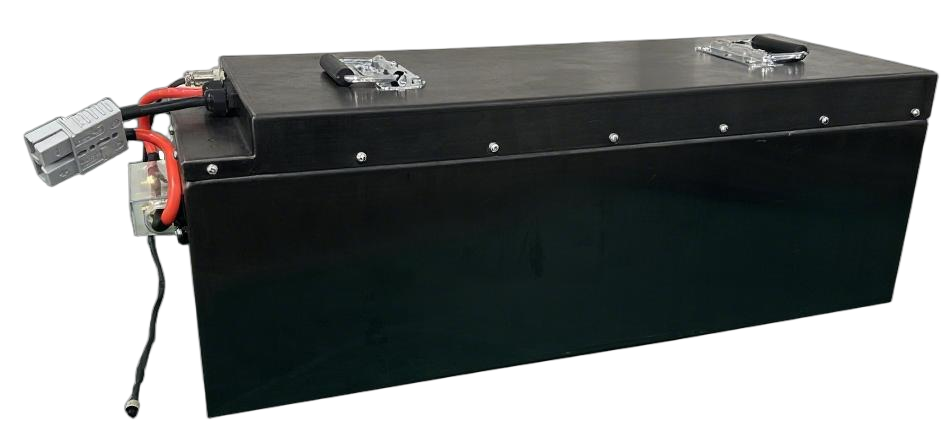

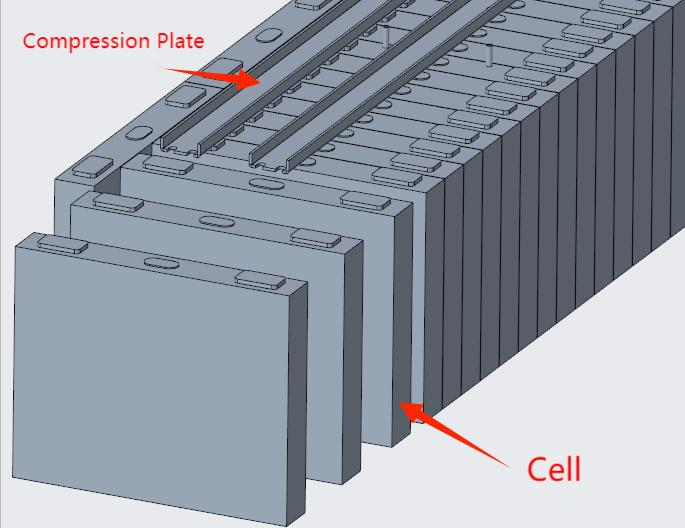

Module appearance and size

Finished Battery Pack Dimensions & Connector Definition:

Dimensions: L(655±2)mm × W(235±2)mm × H(240±2)mm

-Documents Available

Specification File

Technical Drawings

MSDS, UN38.3 Certificate，Certificate of Packaging for Dangerous Goods

Cargo Clarification for Transportation

Applicable vehicle models:
